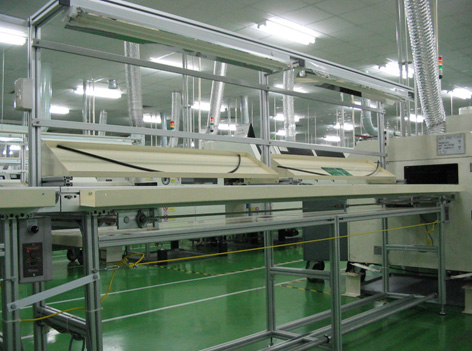

CATALOGUE : Manual Insert Conveyor

Features

  • An aluminum frame with sleek body lines and designed with fine layout

  • Easy-fix construction

  • Compact and slide-free drive unit

  • Energy saver

  • Simple adaptation to required specifications / flexible

  • Easy maintenance

  • Wide range of models

  • Speed adjustable





Machine Specifications

Board Width (mm) :

50mm to 465mm

Overall Length (m) :

3 meter max.

Width (mm) :

Board Width + 130

Height (mm) :

950 +/- 20

Belt Speed :

Speed controller type

Belt :

2 ply Roller Chain

Optional Parts :

Work Table Fluorescent Light, Power-outlet socket, Air Piping, Instruction Manual Holder, Footrest, Balancer Support

Belt Width :

450mm X 2 ply Chain

Speed :

0.5m / min
