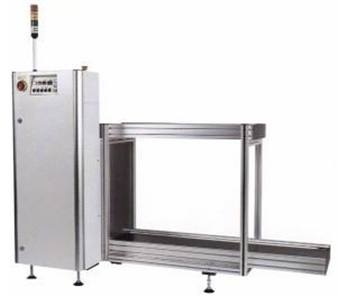

CATALOGUE : Loader & Unloader


- Loader - For loading of PCB from magazine onto production line

- Unloader - For unloading of PCB from production line to magazine


Features

  • Suitable for SMT, ICT Auto and Manual Insertion lines
  • LCD Touch Screen
  • Configurable through the Operator Panel
  • Programmable Logic Control Power failure and abnormal condition recovery
  • Smooth and quiet magazine transfer
  • Upper and lower clamps for positive magazine location
  • Regulated pusher force
  • Fast magazine change time
  • SMEMA Interface for communication between machines
  • Pusher unit available in other conveying mediums e.g. Flat belt, Polycord


Machine Specifications

Cycle time

6 sec

Magazine change time

30secs (20 sec available)

Capacity

Top tier: 2 magazines
Bottom tier: 3 magazines
Other arrangement possible

Magazine pitch

10 to 100mm (in step of 10mm)

Offset pitch

Top and bottom magazine pitch configurable through the operator panel
Other configuration possible

Reference side

Front or rear as specified

Air requirement

5 to 8 bar / 80 liter/min

Electrical requirement

230VA max (voltage as specified)

Optional Items

Tower light
Touch Screen Panel
Other sizes available
